Update

Insert

Nodes

Here we are going to take a step towards making our database more interesting.

We are going to add our own names, in order to create a social network, and then include the relationships to the movies that we like and the movies that we do not like.

From the Data Browser interface, add a node for yourself using the “+ Node” button, and then add Properties

  • Name
  • Gender

by using the “+ Properties” button

../_images/Neo4jDBDataConsole07.png

As you do this, from time to time check the Dashboard to see how the number of nodes and relationships grows in the database.

Relationships

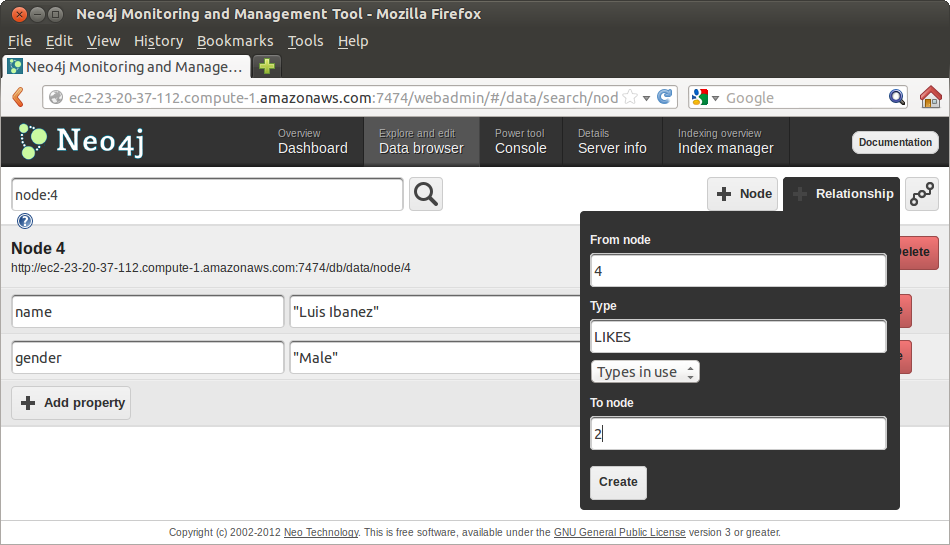

Continue from the Data Browser to add relationships with the “+ Relationship” button. This time add the relationship between the node that represents you, and the movies that you like. Use the type “LIKES” for this relationships.

../_images/Neo4jDBDataConsole08.png

Add the “LIKES” relationship to all the movie nodes that you like.

If you need to check nodes, use the search field on the upper-left corner, and write text such as

node:4

or

relationship:1

Friends

Now add relationships of friendship to your peers.

Use the type “IS_FRIEND_OF” for these relationships.

REST

Note that similar insertions of data could be done from the REST interface, for example by using curl.

Nodes

For example, we could add a movie with

curl -i -X POST http://localhost:7474/db/data/node \
  -H "Content-Type: application/json" \
  -d '{"title":"The Hunchback of Notre Dame","year":1939}'

or add a director with

curl -i -X POST http://localhost:7474/db/data/node \
  -H "Content-Type: application/json" \
  -d '{"name":"William Dieterle"}'

or add a person with

curl -i -X POST http://localhost:7474/db/data/node \
  -H "Content-Type: application/json" \
  -d '{"name":"Terry Gross","gender":"Female"}'

Relationships

We can add a relationship with the command

curl -i -X POST http://localhost:7474/db/data/node/7/relationships \
  -H "Content-Type: application/json" \
  -d '{"to":"http://localhost:7474/db/data/node/5","type":"LIKES"}'

Where we are assuming that “Node 7” is the one that was assigned to “Terry Gross”, and that “Node 5” is the one that got assigned to “The Hunchback of Notre Dame” movie.

and we can add a relationship between a director and a movie with:

curl -i -X POST http://localhost:7474/db/data/node/6/relationships \
  -H "Content-Type: application/json" \
  -d '{"to":"http://localhost:7474/db/data/node/5","type":"DIRECTED"}'

Where we are assuming that “Node 6” is the one that was assigned to “William Dieterle”, and that “Node 5” is the one that got assigned to “The Hunchback of Notre Dame” movie.

Note that the commands are very similar, and the key pieces of information that change between them are the Node numbers and the properties that we express using JSON in the “-d” option.

In the command below we are declaring that the person in “Node 4” “IS_FRIEND_OF” the person in “Node 6”.

curl -i -X POST http://localhost:7474/db/data/node/4/relationships \
  -H "Content-Type: application/json" \
  -d '{"to":"http://localhost:7474/db/data/node/6","type":"IS_FRIEND_OF"}'

The Graph will start looking interesting as we add more nodes and relationships

../_images/Neo4jDBDataConsole09.png
